Περιγραφή
| Κατασκευαστής | ASUS |
|---|---|
| Κατασκευαστής επεξεργαστή | AMD |
| Socket | AM5 |
| Συμβατή Γενιά Επεξεργαστή | AM5 |
| Chipset | B840 |
| Ενσωματωμένος επεξεργαστής | No |
| Τύπος μητρικής | MicroATX |
| Υποστηριζόμενη μνήμη | DDR5 |
| Μέγιστο μέγεθος μνήμης | 192GB |
| Ενσωματωμένη κάρτα γραφικών | AMD Radeon Graphics support |
| Υποστήριξη CrossfireX / SLI | No / No |
| Ήχος | 8 Channel High Definition |
| SATA 3Gb/s | Όχι |
| SATA 6Gb/s | 4 |
| RAID | Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10 |
| PCI Express (x16, x8) | 2 |
| PCI Express (x4) | Όχι |
| PCI Express (x1) | 1 |
| PCI | Όχι |
| USB 2.0 | 4 |
| Firewire / eSATA | No / No |
| Δίκτυο | Ethernet 100 / 1000 / 2500 |
| Σειριακή θύρα / Παράλληλη θύρα | No / No |

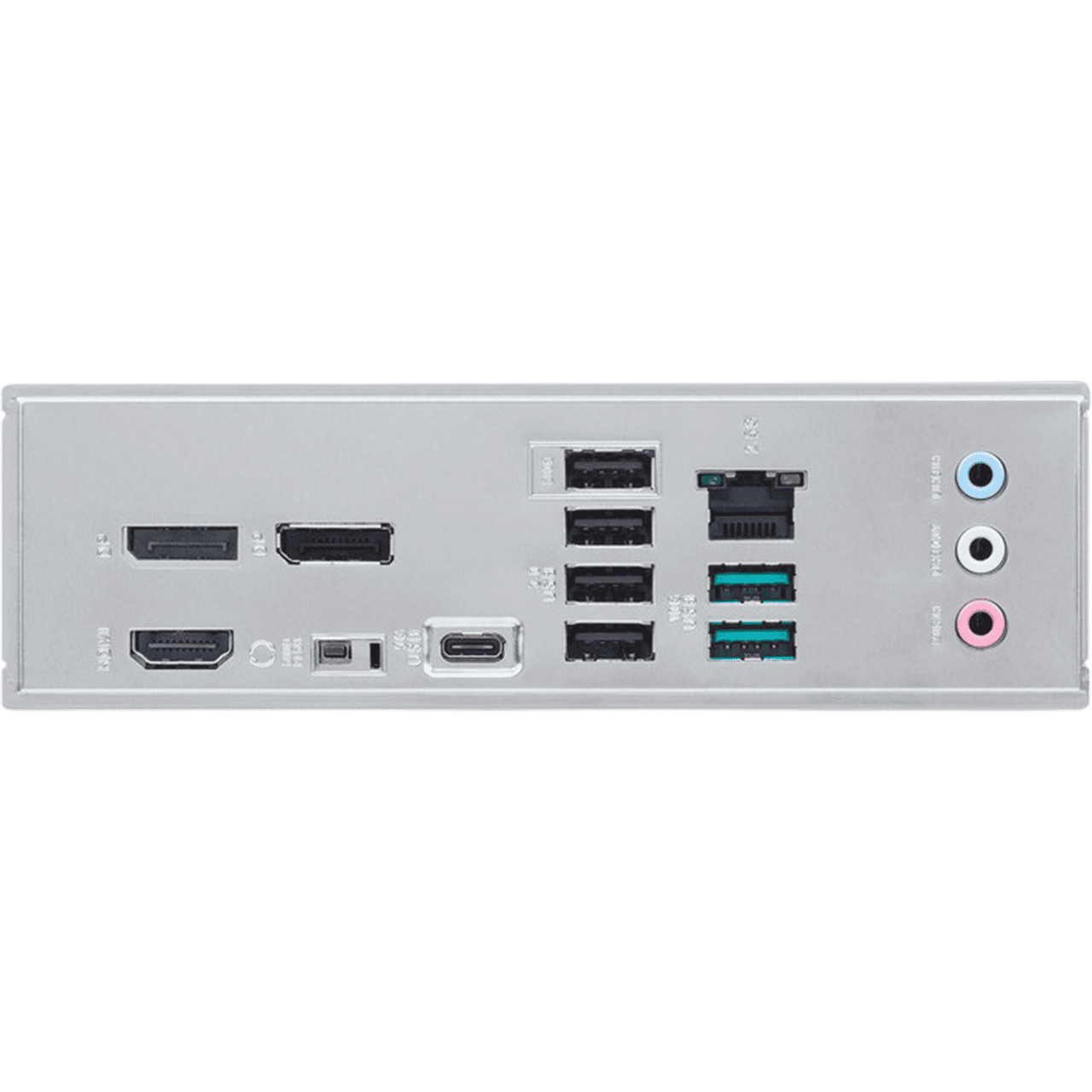

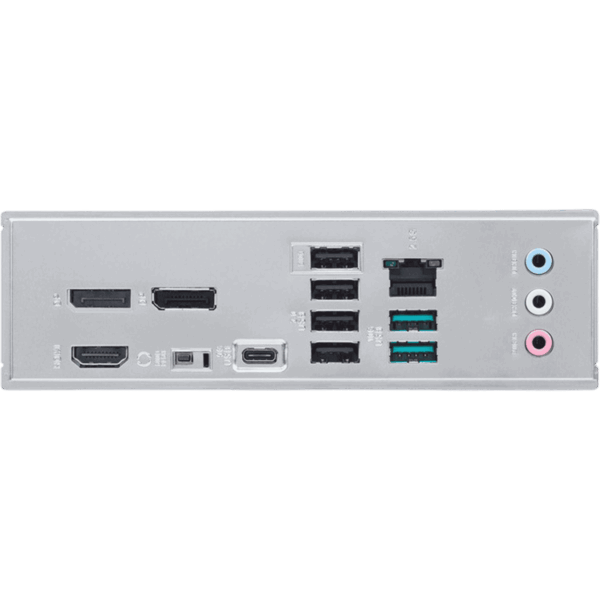

| Επιπρόσθετα | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports 2 x USB 10Gbps ports (2 x Type-A) 1 x USB 5Gbps port (1 x USB Type-C) 4 x USB 2.0 ports (4 x Type-A) 2 x DisplayPort 1 x HDMI port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack buttonprime-b840-plus-wifi/techspec/ https://www.asus.com/motherboards-components/motherboards/csm/prime-b840m-a-csm/techspec/ |
| Εγγύηση (μήνες) | 36 |
