| On-board graphics adapter dynamic frequency (max) |
1550 MHz |
| Warranty |
3 Years |
| ECC |
Yes |
| Intel 64 |
Yes |
| Mode-based Execute Control (MBE) |
Yes |
| Processor model |
i5-14500 |
| Intel® Volume Management Device (VMD) |
Yes |
| Idle States |
Yes |
| Thermal Monitoring Technologies |
Yes |
| Graphics output |
eDP 1.4b – DP 1.4a – HDMI 2.1 |
| Processor boost frequency |
5 GHz |
| Processor cache |
24 MB |
| Box |
Yes |
| On-board graphics adapter |
Yes |
| Scalability |
1S |
| On-board graphics adapter maximum resolution (eDP – Integrated Flat Panel) |
5120 x 3200 Pixel |
| Intel® Secure Key |
Yes |
| PCI Express slots version |
4.0 -5.0 |
| On-board graphics adapter refresh rate at maximum resolution (HDMI) |
60 Hz |
| Intel® Speed Shift Technology |
Yes |
| Processor threads |
20 |
| On-board graphics adapter maximum resolution (HDMI) |
4096 x 2160 Pixel |
| Memory channels |
Dual-channel |
| On-board graphics adapter DirectX version |
12.0 |
| Embedded options available |
Yes |
| Processor operating modes |
64-bit |
| Processor socket |
LGA 1700 |
| Enhanced Intel SpeedStep Technology |
Yes |
| Harmonized System (HS) code |
8542310001 |
| Processor codename |
Raptor Lake |
| Intel® Hyper Threading Technology (Intel® HT Technology) |
Yes |
| Number of execution units |
32 |
| CPU configuration (max) |
1 |
| PCI Express configurations |
1×16+1×4 -2×8+1×4 |
| On-board graphics adapter model |
Intel UHD Graphics 770 |
| Intel® Quick Sync Video Technology |
Yes |
| Processor cores |
14 |
| Memory bandwidth (max) |
76.8 GB/s |
| Processor cache type |
Smart Cache |
| Processor ARK ID |
236784 |
| Maximum internal memory supported by processor |
192 GB |
| Maximum number of PCI Express lanes |
20 |
| On-board graphics adapter ID |
0x4680 |
| Number of displays supported (on-board graphics) |
4 |
| Intel® Deep Learning Boost (Intel® DL Boost) |
Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Execute Disable Bit |
Yes |
| Memory types supported by processor |
DDR4-SDRAM -DDR5-SDRAM |
| Memory bandwidth supported by processor (max) |
76.8 GB/s |
| Intel® OS Guard |
Yes |
| Maximum internal memory |
192 GB |
| Tjunction |
100 C |
| Market segment |
Desktop |
| Launch date |
Q1’24 |
| Supported instruction sets |
AVX 2.0 -SSE4.1 -SSE4.2 |
| Processor family |
Intel Core i5 |
| On-board graphics adapter outputs supported |
Embedded DisplayPort (eDP) 1.4b -DisplayPort 1.4a -HDMI 2.1 |
| On-board graphics adapter refresh rate at maximum resolution (eDP – Integrated Flat Panel) |
120 Hz |
| On-board graphics adapter OpenGL version |
4.5 |
| Status |
Launched |
| Intel® Boot Guard |
Yes |
| On-board graphics adapter maximum resolution (DisplayPort) |
7680 x 4320 Pixel |
| L2 cache |
11776 KB |
| Intel® Turbo Boost Technology |
2.0 |
| Discrete graphics adapter |
No |
| Intel® AES New Instructions (Intel® AES-NI) |
Yes |
| Processor package size |
45 x 37.5 mm |
| Intel Virtualization Technology (VT-x) |
Yes |
| Discrete graphics adapter model |
Not available |
| Cooler included |
Yes |
| Processor manufacturer |
Intel |
| On-board graphics adapter refresh rate at maximum resolution (DisplayPort) |
60 Hz |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Yes |

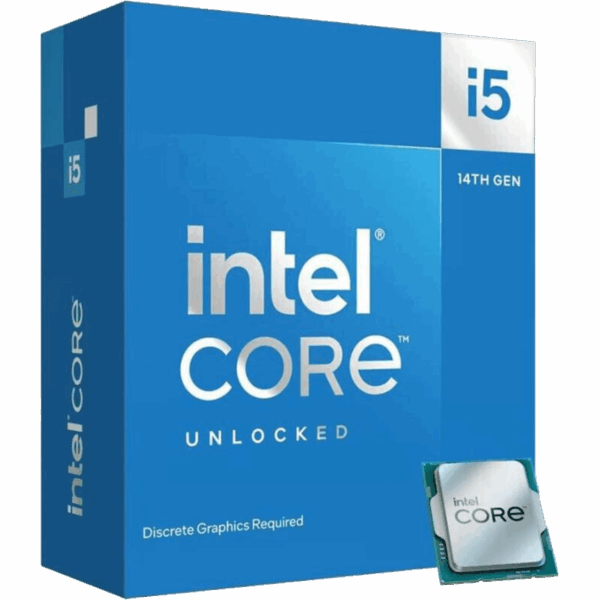

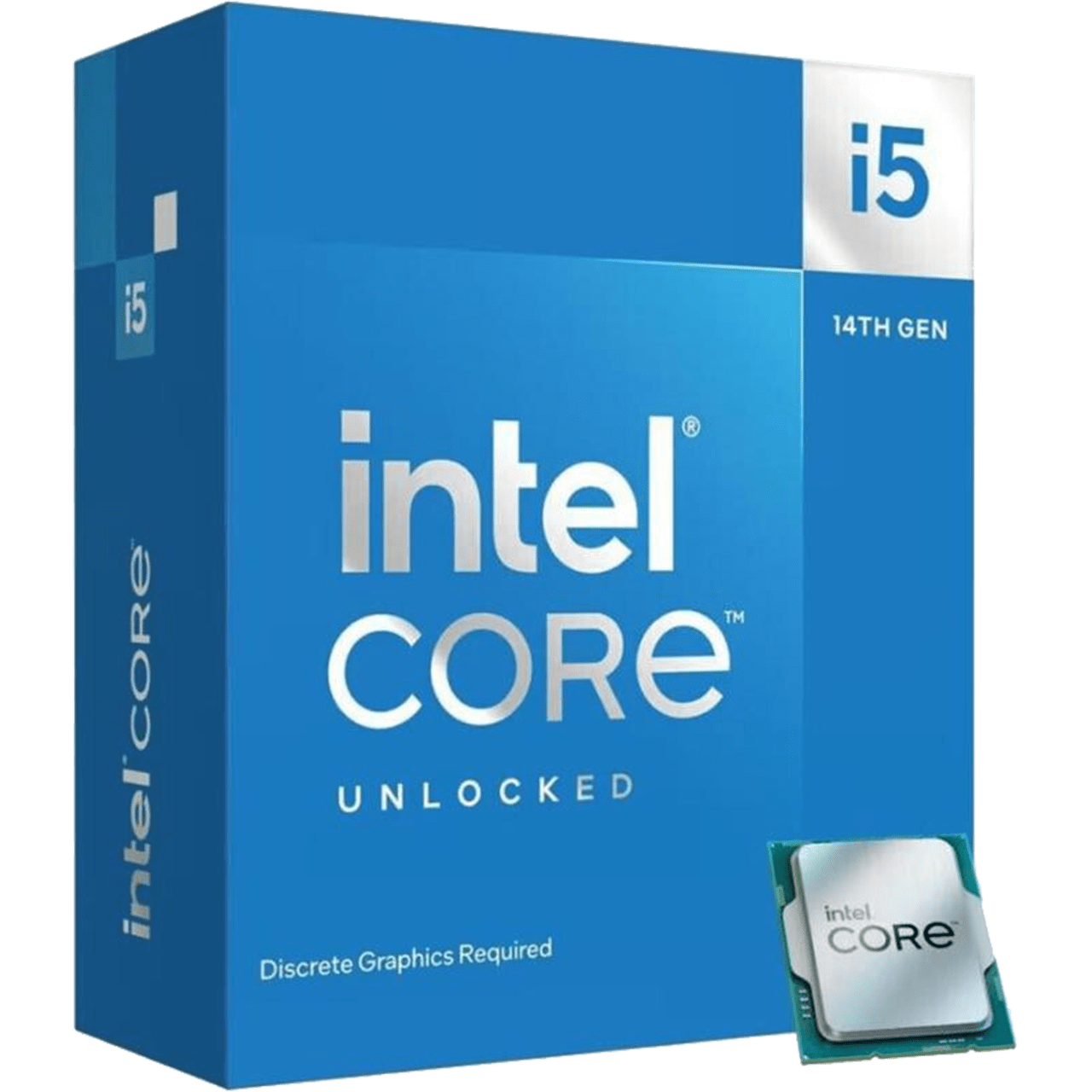

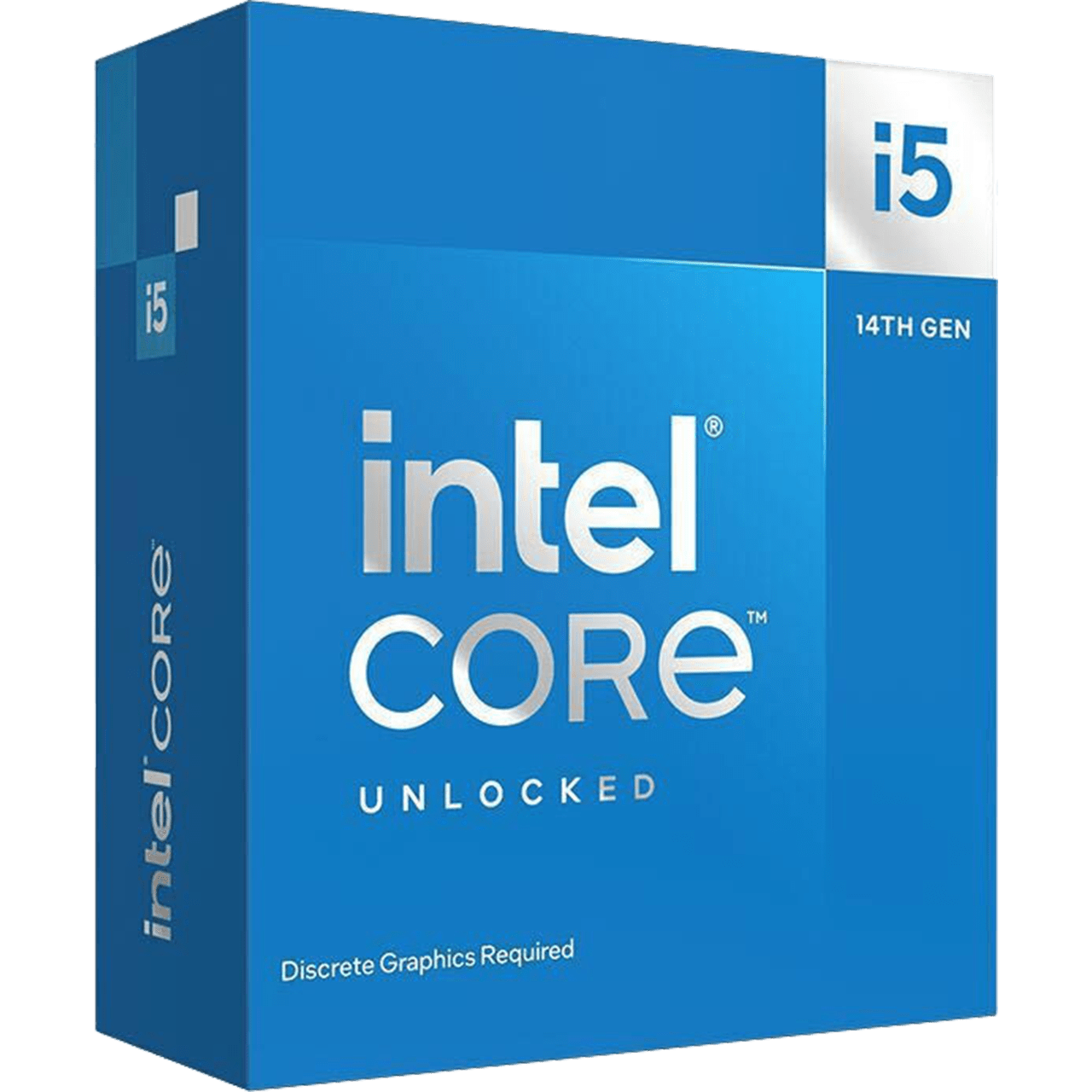

![INTEL CPU Core i5-14500 [14 Cores | 20 Threads | 2.6GHz | LGA 1700]](https://shop.asisnet.gr/wp-content/uploads/2025/05/Intel-Core-i5.png)
